IMPACT DRILL SAFETY WARNINGS

1. Wear ear protectors when impact drilling.

Exposure to noise can cause hearing loss.

2. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

3. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting

accessory may contact hidden wiring or its own

cord.

Cutting accessory contacting a “live” wire may make

exposed metal parts of the power tool “live” and could

give the operator an electric shock.

ADDITIONAL SAFETY WARNINGS

1. Ensure that the power source to be utilized conforms

to the power requirements specifi ed on the product

nameplate.

2. Ensure that the power switch is in the OFF position.

If the plug is connected to a receptacle while the power

switch is in the ON position, the power tool will start

operating immediately, which could cause a serious

accident.

3. When the work area is removed from the power source,

use an extension cord of suffi cient thickness and rated

capacity. The extension cord should be kept as short as

practicable.

4. Drilling

○ When drilling, start the impact drill slowly, and gradually

increasing speed as you impact drill.

○ Always apply pressure in a straight line with the bit. Use

enough pressure to keep drilling, but do not push hard

enough to stall the motor or defl ect the bit.

○ To minimize stalling or breaking through the material,

reduce pressure on drill and ease the bit through the last

part of the hole.

○ If the impact drill stalls, release the trigger immediately,

remove the bit from the work and start again. Do not

click the trigger on and off in an attempt to start a stalled

impact drill. This can damage the impact drill.

○ The larger the drill bit diameter, the larger the reactive

force on your arm.

Be careful not to lose control of the impact drill because

of this reactive force.

To maintain fi rm control, establish a good foothold, use

side handle, hold the impact drill tightly with both hands,

and ensure that the impact drill is vertical to the material

being drilled.

○ Precautions on boring

The drill bit may become overheated during operation;

however, it is suffi ciently operable. Do not cool the drill

bit in water or oil.

○ Caution concerning immediately after use

Immediately after use, while it is still revolving, if the

impact drill is placed on a location where considerable

ground chips and dust have accumulated, dust may

occasionally be absorbed into the drill mechanism.

Always pay attention to this undesirable possibility.

5. Check the rotational direction

○ Actuate the rotational change lever only when the

machine is at a standstill.

The rotational change lever is used to reverse the

rotational direction of the machine.

However, this is not possible with the On/Off switch

actuated.

○ Operating the tool with the rotational change lever in

mid-position may result in damage.

When switching, make sure that you shift the rotational

change lever to the correct position.

○ Always use the impact drill with clockwise rotation, when

using it as an impact drill.

6. IMPACT to ROTATION changeover

○ Do not use the impact drill in the IMPACT mode if the

material can be bored by rotation only. Such action will

not only reduce drill effi ciency, but may also damage the

drill tip.

○ Operating the impact drill with the change lever in

mid-position may result in damage. When switching,

make sure that you shift the change lever to the correct

position.

7. RCD

The use of a residual current device with a rated residual

current of 30 mA or less at all times is recommended.

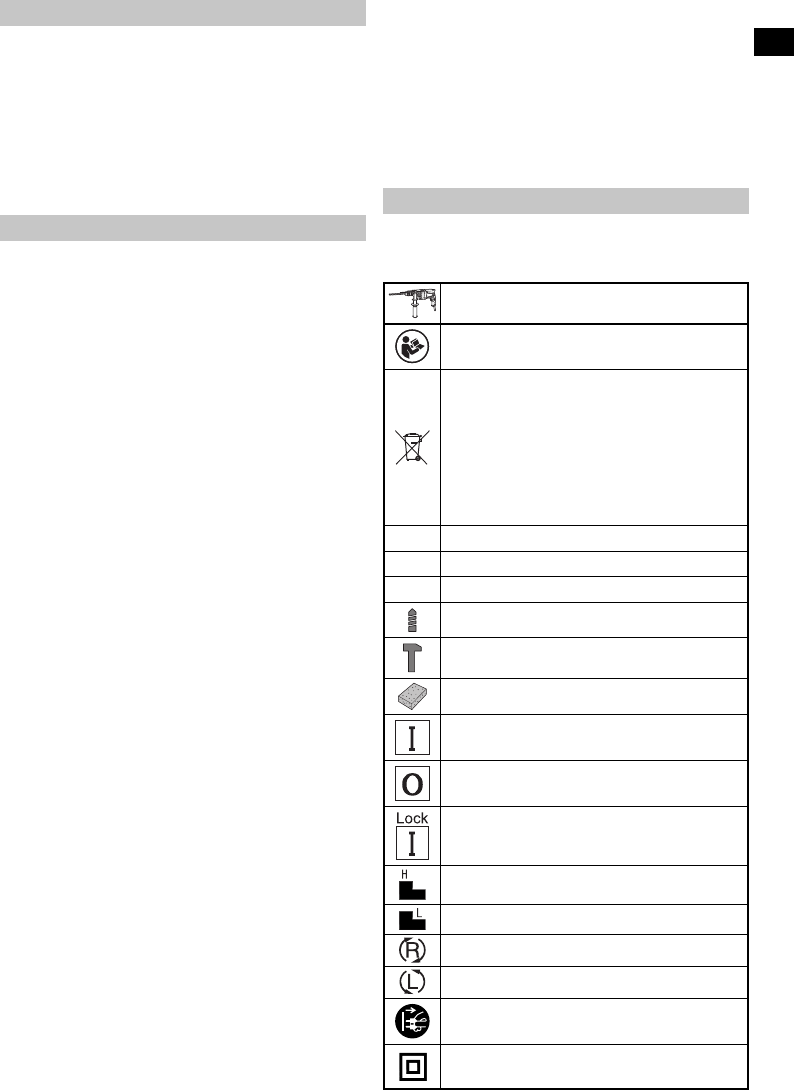

SYMBOLS

WARNING

The following show symbols used for the machine.

Be sure that you understand their meaning before

use.

DV22V: Impact Drill

Read all safety warnings and all instructions.

Only for EU countries

Do not dispose of electric tools together with

household waste material!

In observance of European Directive 2002/96/

EC on waste electrical and electronic equipment

and its implementation in accordance with

national law, electric tools that have reached

the end of their life must be collected separately

and returned to an environmentally compatible

recycling facility.

V

Rated voltage

P

Power Input

n

0

No-load speed

Rotation only function

Rotation and impact function

Concrete

Switching ON

Switching OFF

On / Off switch lock-on

Change rotation speed - High speed

Change rotation speed - Low speed

Clockwise rotation

Counterclockwise rotation

Disconnect mains plug from electrical outlet

Class II tool

0000Book̲DV22V.indb30000Book̲DV22V.indb3 2017/12/0411:31:242017/12/0411:31:24
