INSTALLATION

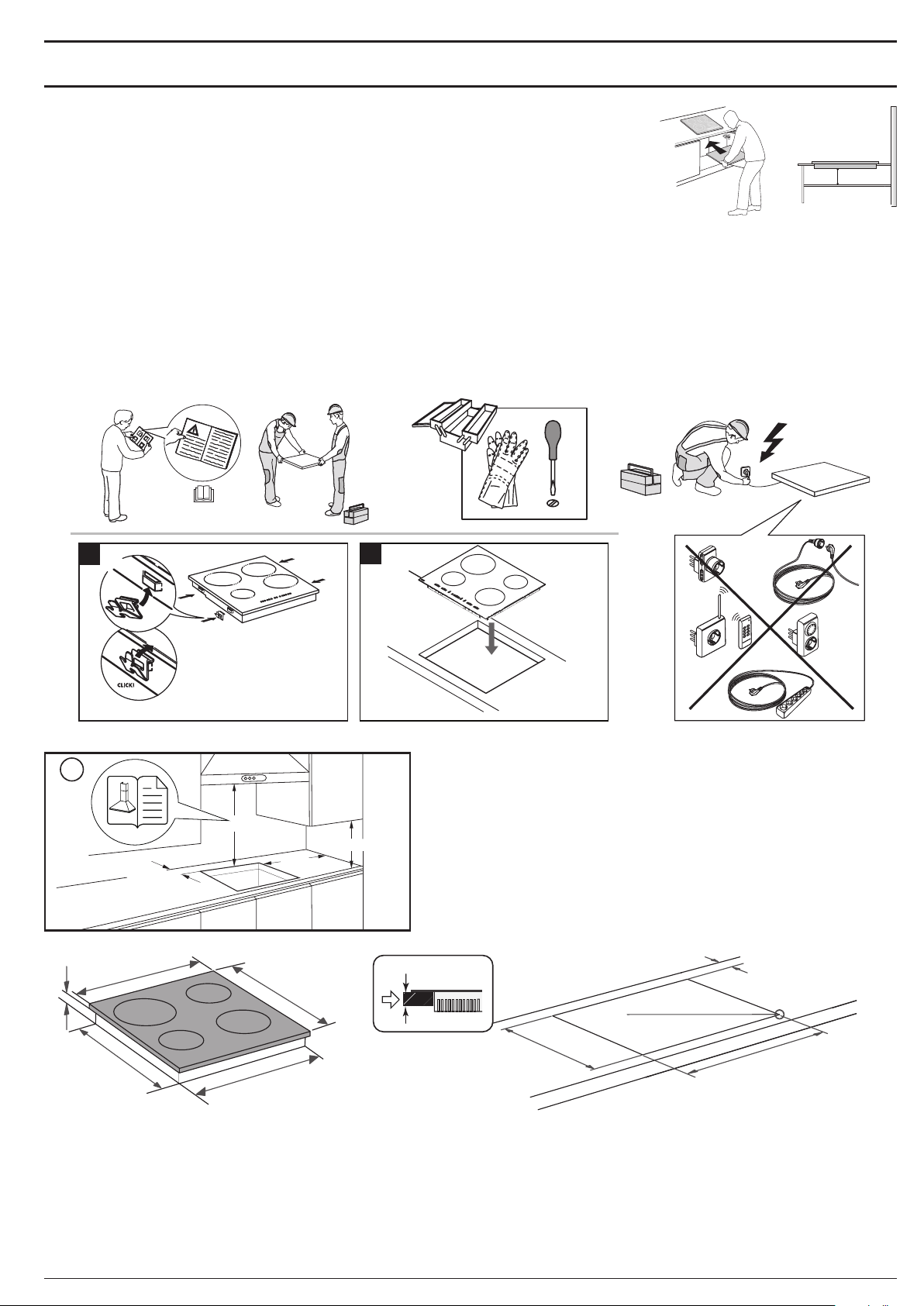

• The cooktop must be set into a worktop at least 20 mm deep.

• There must be nothing between the cooktop and the oven (cross rails, brackets, etc.).

• Make sure the power cord is long enough to allow convenient installation.

• The distance between the lower face of the glass-ceramic hob and the cupboard or separating panel

must be at least 20 mm.

• For built-in dimensions and installation, see the picture in this paragraph.

• A minimum distance must be maintained between the hob and the hood above it. Please refer to the user

manual of the hood for more information.

• Apply the supplied gasket to the cooktop (unless it has already been tted) after cleaning its surface.

• Do not install the cooktop near a dishwasher or washing machine so that the electronic circuits do not contact with steam or moisture, which could

damage them.

• If an oven is installed beneath the cooktop, make sure that it is equipped with a cooling system. If the temperature of the electronic circuits exceeds the

maximum permitted temperature, the cooktop will switch o automatically; in this case, wait for a few minutes until the internal temperature of the electronic

circuits reaches a tolerable level, at which point it will be possible to switch the hob on again.

PLACING THE HOB

After the electrical connection (see the chapter “Electrical connection”), position each xing clips on the dedicated slots on the hob’s lateral sides as shown in the

picture. Then push the hob inside the cut-out and check that the glass is at and parallel to the worktop. The xing clips are designed for every type of worktop

material (wood, marble, etc.).

4x

1

2

DIMENSIONS AND DISTANCES TO BE MAINTAINED

Min. 40 cm

L

Min. 5 cm

Min.10 cm

i

552 mm

47 mm

507 mm

577 mm

Min. 6,5 mm

Max. 8 mm

490 - 492 mm

560 - 562 mm

Min. 50 mm

Min.

20 mm

482 mm

REMOVING THE HOB:

To remove the hob, rst, disconnect it from the electric supply. It is strongly recommended to free the underneath part from the oven, drawer, separator, or other.

It allows the technician to access the lower part of the hob to unfasten the four clips with a screwdriver, lift the hob and remove it, avoiding any worktop damage.

min. 20 mm
