Priručnik Toshiba RAS-4M23SAV-E Klimatizacijski uređaj

Priručnik

5412 3

6

385(

5(6(7

1

Press : Move the louver in the

desired vertical direction.

2

Press : Swing the air automatically

and press again to stop.

3

For horizontal direction, adjust manually.

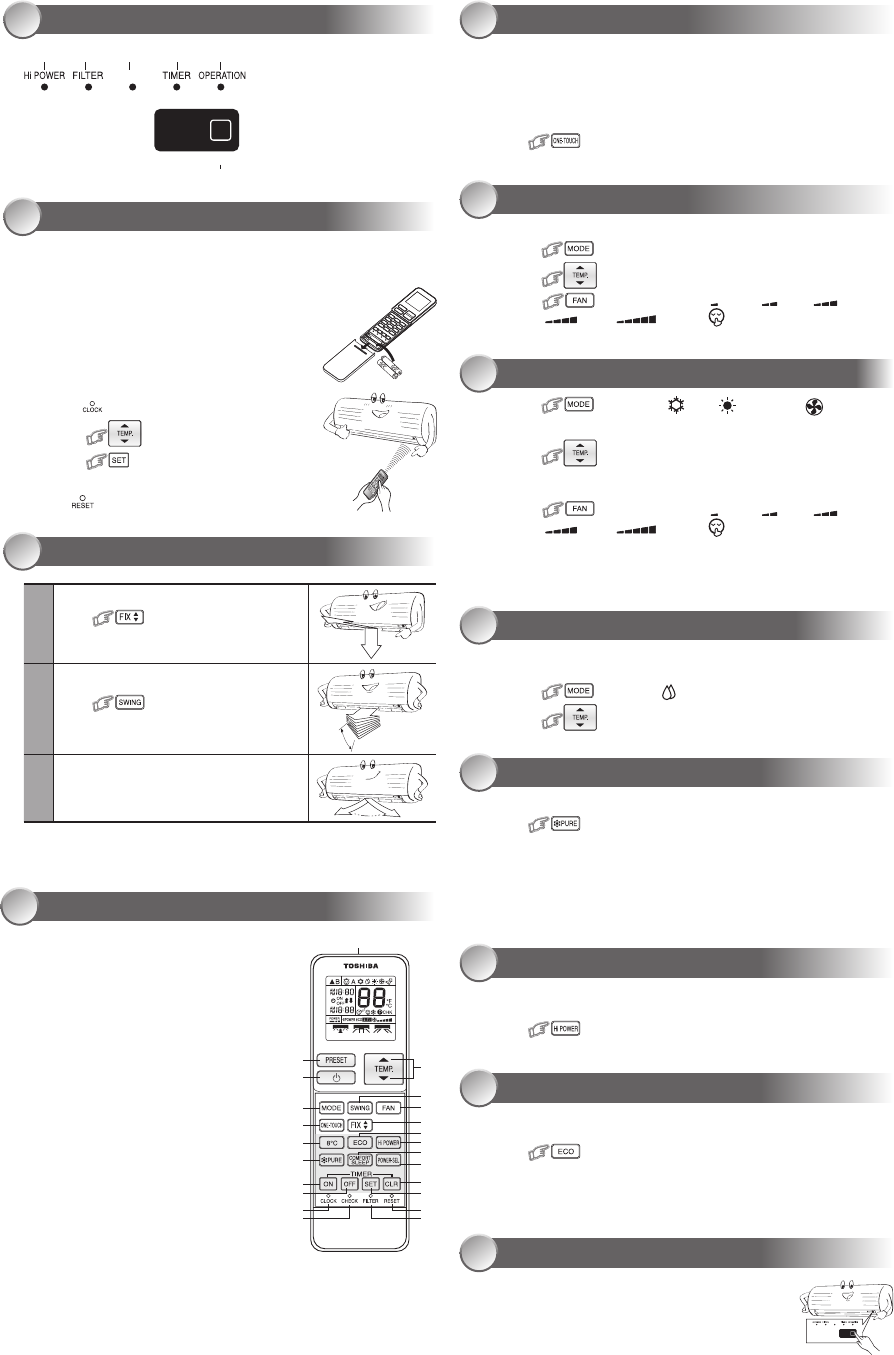

INDOOR UNIT DISPLAY

1

Hi POWER (Green)

2

FILTER (Orange)

3

PURE (Blue)

4

TIMER (Yellow)

5

OPERATION (Green)

6

RESET button

1

Infrared signal emitter

2

Memory and preset button (PRESET)

3

Start/Stop button

4

Temperature up/down and

Timer or clock up/down button (TEMP.)

5

Mode select button (MODE)

6

Swing louver button (SWING)

7

Fan speed button (FAN)

8

One Touch button (ONE-TOUCH)

9

Set louver button (FIX)

-

8 degree celcius operation button (8°C)*

=

Economy button (ECO)

q

High power button (Hi-POWER)

w

Plasma Air Purifi er button (PURE)

e

Comfort sleep button (COMFORT SLEEP)

r

Power selection button (POWER-SEL)*

t

On timer button (ON)

y

Off timer button (OFF)

u

Setup button (SET)

i

Clear button (CLR)

o

Clock setup button (CLOCK)

p

Check button (CHECK)

[

Filter reset button (FILTER)

]

Reset button (RESET)

1

PREPARATION BEFORE USE

2

Preparing Filters

1. Open the air inlet grille and remove the air fi lters.

2. Attach the fi lters. (see detail in the accessory sheet).

AIRFLOW DIRECTION

3

Note:

• Do not move the louver manually by others.

• The louver may automation positioning by some operation mode.

REMOTE CONTROL

4

ONE-TOUCH

5

Press the “ONE-TOUCH” button for fully automated operation that is

customised to the typical consumer preferences in your region of the world.

The customised settings control temperature air fl ow strength, air fl ow

direction and other settings to provide you alternate contact with “ONE-

TOUCH” of the button. If you prefer other settings you can select from the

many other operating functions of your Toshiba unit.

Press

: Start the operation.

* These 2 functions cannot be activated by the remote controller provided in

carton, please contact your distributor or retailer for purchasing of optional

remote controller in order to activate such functions. Its service part no. is

43T66311 (Model: WH-TA01JE). Only when using a single split outdoor unit

is connected, WH-TA01JE can be used.

AUTOMATIC OPERATION

6

To automatically select cooling, heating, or fan only operation

1. Press

: Select A.

2. Press

: Set the desired temperature.

3. Press

: Select AUTO, LOW , LOW+ , MED ,

MED+ , HIGH , or Quiet .

COOLING / HEATING / FAN ONLY OPERATION

7

1. Press : Select Cool , Heat , or Fan only .

(Fan only operation is required optional remote controller)

2. Press : Set the desired temperature.

Cooling: Min. 17°C, Heating: Max. 30°C, Fan Only: No temperature

indication

3. Press

: Select AUTO, LOW , LOW+ , MED ,

MED+ , HIGH , or Quiet .

Note: QUIET is supper low fan speed for quiet operation.

When using a multi-system outdoor unit is connected, FAN ONLY

operation cannot be used.

DRY OPERATION (COOLING ONLY)

8

For dehumidifi cation, a moderate cooling performance is controlled

automatically.

1. Press

: Select Dry .

2. Press : Set the desired temperature.

AIR PURIFYING OPERATION

9

During air conditioner operation

Press

to start and stop plasma air purifi er and air ionizer

operation.

The plasma air purifi er and air ionizer can be activated or deactivated during

air conditioner is stopped and the air ionizer starts in conjunction with plasma

air purifi er operation.

Note: The FILTER indicator (orange) turns on after PURE operation is

performed for about 1000 hours.

Hi-POWER OPERATION

10

To automatically control room temperature and airfl ow for faster cooling or

heating operation (except in DRY and FAN ONLY mode)

Press

: Start and stop the operation.

ECO OPERATION

11

To automatically control room to save energy (except in DRY and FAN ONLY

mode)

Press

: Start and stop the operation.

Note: Cooling operation; the set temperature will increase automatically 1

degree/hour for 2 hours (maximum 2 degrees increase). For heating

operation the set temperature will decrease.

TEMPORARY OPERATION

12

In case of the misplaced or discharged remote control

• Pressing the RESET button, the unit can start or stop

without using the remote control.

• Operation mode is set on AUTOMATIC operation,

preset temperature is 25°C and fan operation is

automatic speed.

1

4

6

7

9

=

q

e

r

i

u

]

[

3

2

5

8

-

w

t

y

o

p

385(

5(6(7

Loading Batteries

1. Remove the battery cover.

2. Insert 2 new batteries (AAA type) following

the (+) and (–) positions.

Clock Setup

1. Push

by tip of the pencil.

2. Press

: adjust the time.

3. Press : Set the time.

Remote Control Reset

Press

for reset.
