GB

5

t) If you are using the unit on a carpet, make sure

that the air supply to the ventilation holes is suffi-

cient.

u) Only one person may use the unit at a time.

v) Protect the vibration plate against moisture and

water, and ensure that the electrical components

do not come into contact with water.

w) This device is not suitable for pregnant women

and persons with reduced physical, sensory or

mental abilities. Persons who do not have any ex-

perience with equipment such as these need an

explanation on how the machine operates and

how to use before using it for the first time.

x) It is dangerous to reach into the inside area of the

foot plate with your hand.

y) Always make sure that weight is evenly distributed

to avoid damage to the unit and the development

of noise.

3

33

3 L

LL

L

IST OF PAR

IST OF PARIST OF PAR

IST OF PARTS

TSTS

TS

No.

No.No.

No.

Description

DescriptionDescription

Description

#

##

#

1

Remote control

1

2

Display cover

1

3

Display

1

4

Transparent panel

1

5

Upper housing cover

1

6

Centre section of housing

1

7

Phillips screw ST4 x 12

18

8

Base plate

1

9

Plastic connector

2

10

Motor

1

11

Motor mounting

bracket

1

12

Main frame

1

13

Bottom plate

1

14

Transport roller

1

15

R clamp

2

16

Cable connection

3

17

Magnetic ring

1

18

Stretch tube with handle (

L

60 cm)

2

19

Lower housing cover

1

20

Base supports

4

21

Power cable with power plug

1

22

Power switch

1

23

Fitting for power switch

1

24

Fuse

1

25

Rubber mat

1

26

Hexagonal head bolt M8 x 25

2

27

Motor mounting bracket

1

28

Hook

2

29

Phillips screw ST3 x 10

4

No.

No.No.

No.

Description

DescriptionDescription

Description

#

##

#

30

Connecting pin

2

31

Ball bearing sleeve

2

32

Screw M5 x 30

8

33

Nut

with nylon insert M8

4

34

Cover for axle mounting bracket

2

35

Axle mounting bracket

2

36

Ball bearing 6201

2

37

Flywheel

1

38

Spring washer ±8

6

39

Hex bolt M8 x 20

2

40

Bushing

1

41

Axle

1

42

V

-

belt

1

43

Washer ±4

1

44

Insulation

2

Figure A shows the exploded assembly drawing of

your new equipment. Please note that the unit is al-

ready pre-assembled.

4

44

4 I

II

I

NSTRUCTIONS FOR USE

NSTRUCTIONS FOR USENSTRUCTIONS FOR USE

NSTRUCTIONS FOR USE

4.1

4.14.1

4.1 General instructions

General instructionsGeneral instructions

General instructions

The equipment is already fully assembled. Check that

your new equipment is complete with no parts missing

before using it for the first time. Make sure that you

have emptied the box completely. If, despite our quality

controls, a part or two are missing, please contact our

service centre using the contact details at the end.

4.2

4.24.2

4.2 Computer

ComputerComputer

Computer

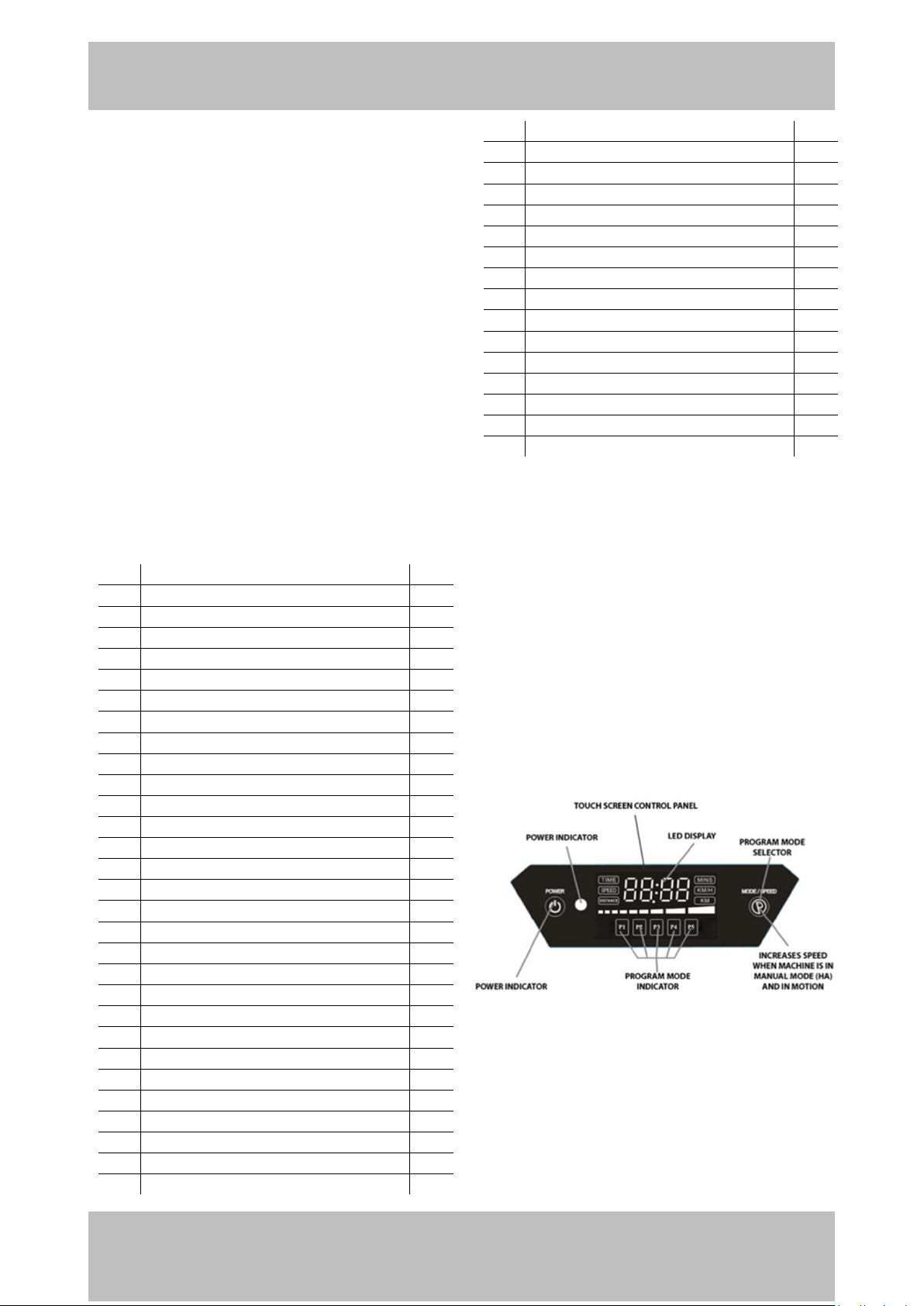

The figure above shows the Touch Screen Control Panel

on the vibration board. The LED display shows, among

other things, the time. A possibly selected training pro-

gram („Program Mode Indicator‰) is displayed below

it.
